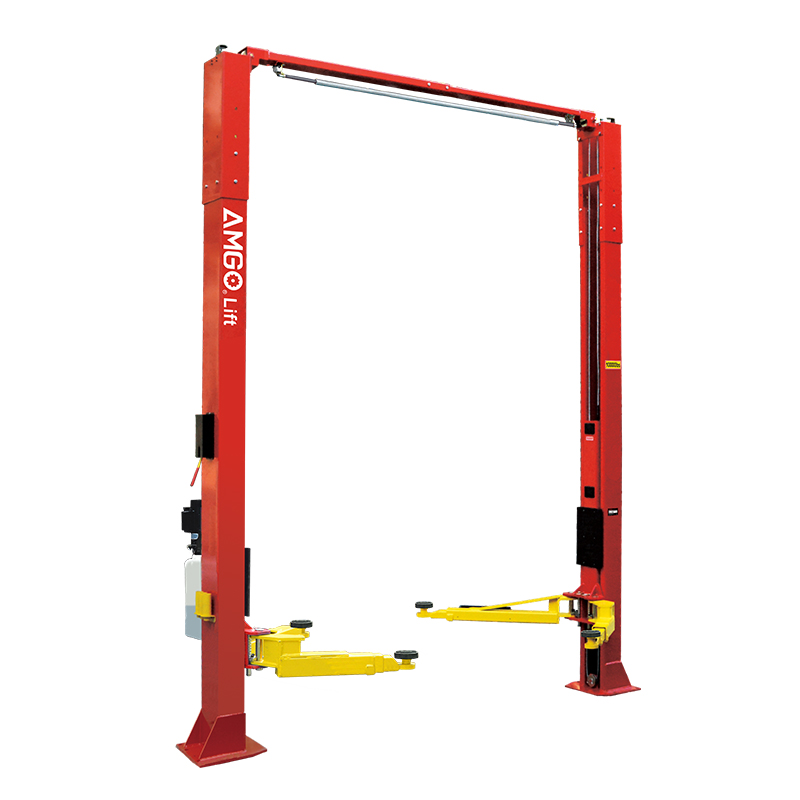

OHX-10H

The professional lifts model OHX Series are designed with asymmetric arms but also can be configured with symmetric,Height & Width adjustment, fitting for low ceiling (model OHX-10) and hight ceiling but with extremly high lifting (model OHX-10H).

Contact Us Now

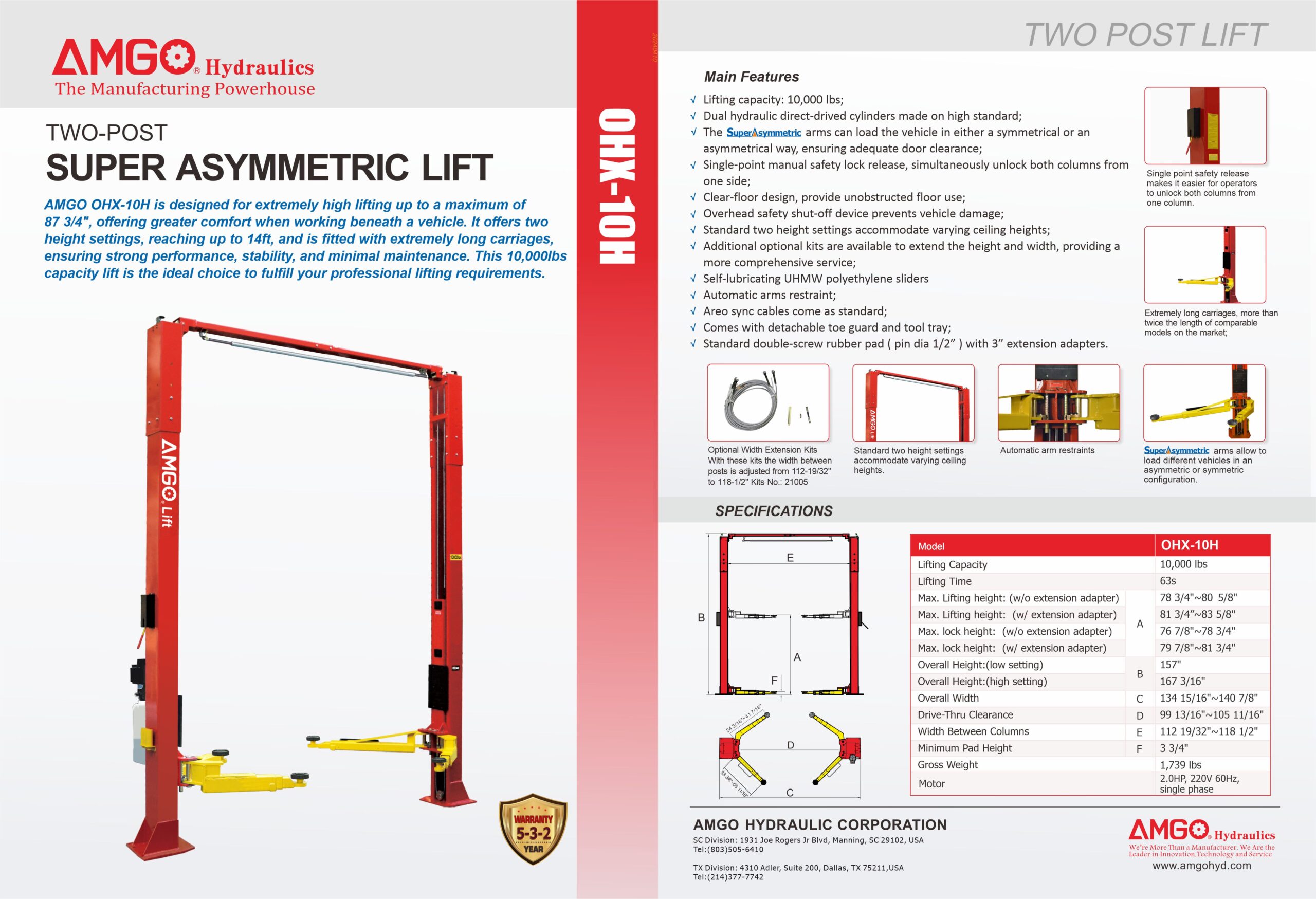

Download Product Brochure

Manual

Categories: ,

Description

Features

•  Dual direct drive hydraulic cylinders made to high standards

•  Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration

• Single point safety release, allows the operator to disengage both columns simultaneously

• Self lubricating UHMW Polyethylene sliders and bronze bushings

• Clear floor design, provides unobstructed floor use

• Single piece column allowing for easier installation

• Stackable rubber pads and 1.5″, 2.5″, 5″

• Adjustable heights and width

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

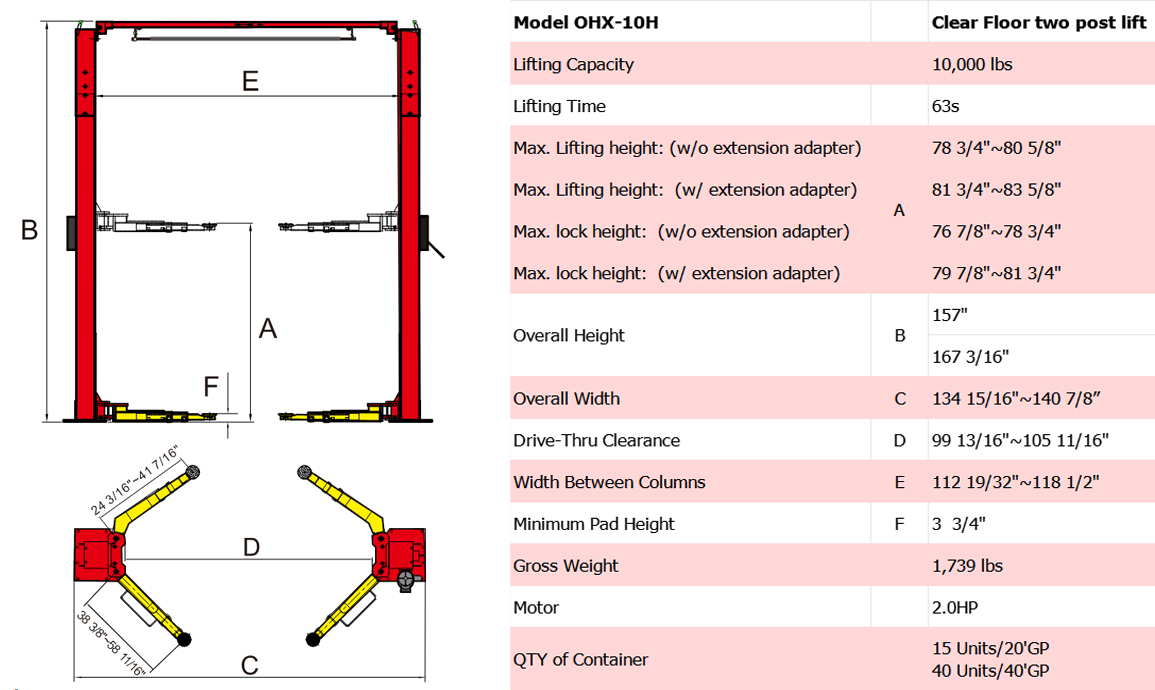

Model OHX-10H
Lifting Capacity 10,000 lbs (4,536 kg)
Lifting Time 63 S
A: Lifting Height 78 3/4″ ~ 87 3/4″ (2000~2229mm)
B: Overall Height 157″~168″ (3988~4267mm)
C: Overall Width 135″ / 140 7/8″ (3428/3578mm)
D: Drive Thru Clearance 99 1/4″ / 105 1/8″ (2520/2670mm)
E: Width Between Columns 112 1/4″ / 118 1/8″ (2850/3000mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP / 220V/60Hz, Single Phase
Gross Weight 1,744 lbs (791 kg)

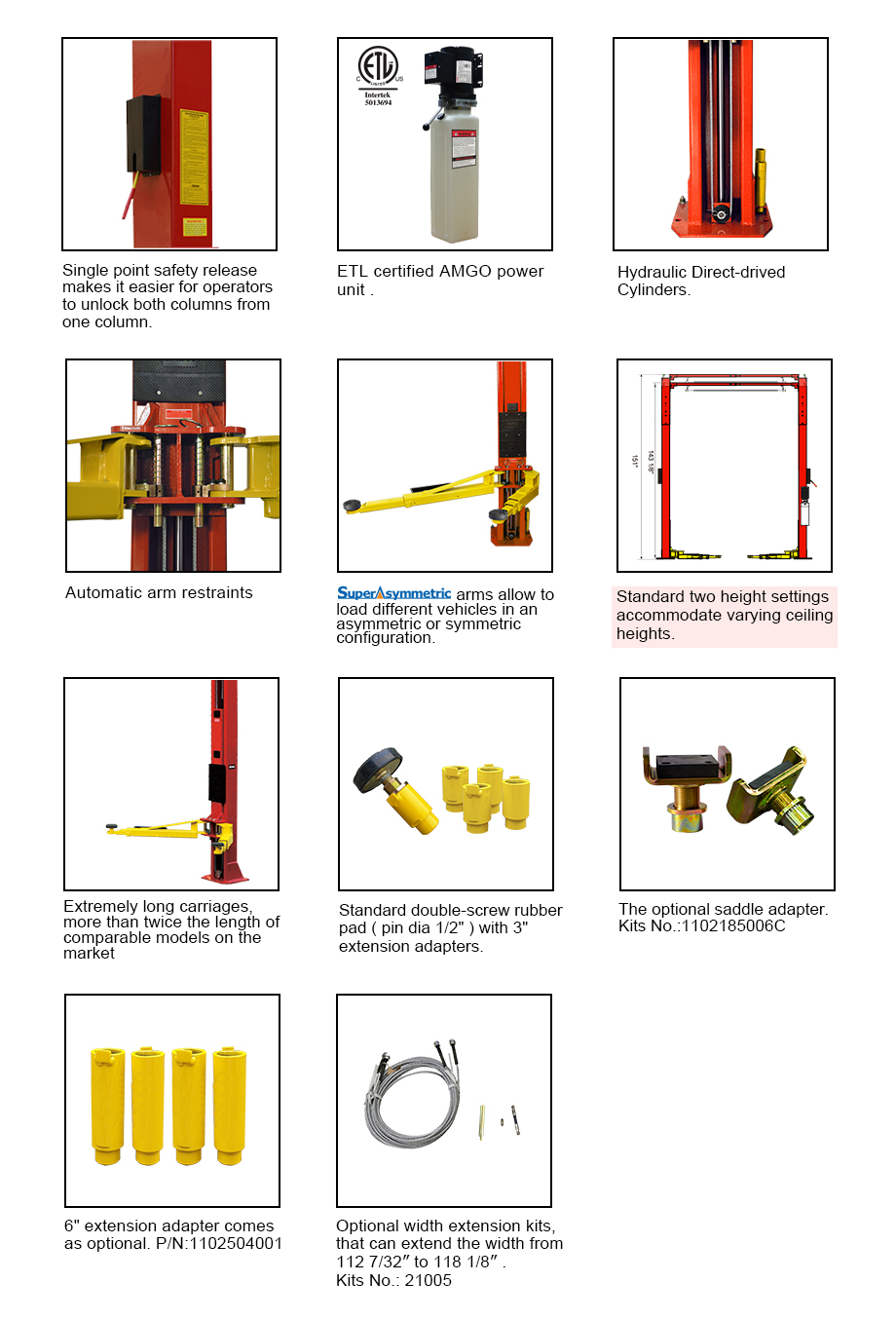

Detailed Images
