BP-12

(2 customer reviews)

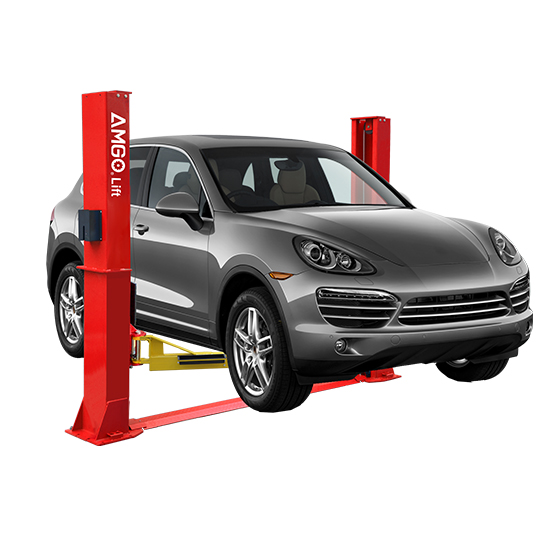

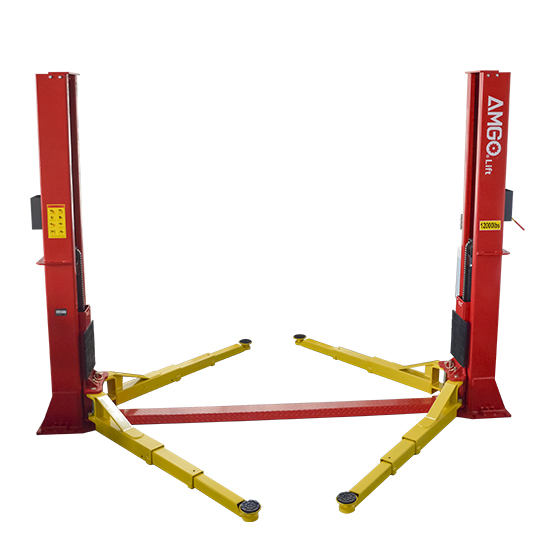

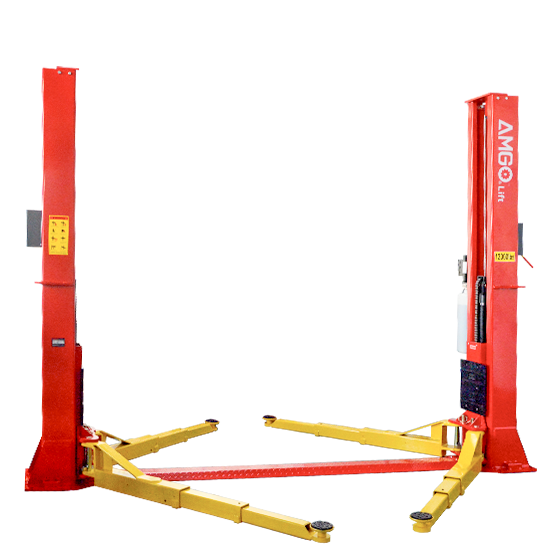

AMGO BP Series Base plate two post lifts are stronger and more convenient to operate than most all other lifts in the world. The rugged BP-12 can lift vehicles up to 12,000 lbs. and is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO two post lifts are manufactured according to high-quality standards, while using critical materials and parts choosing, with advanced features and innovative technology.

Contact Us Now

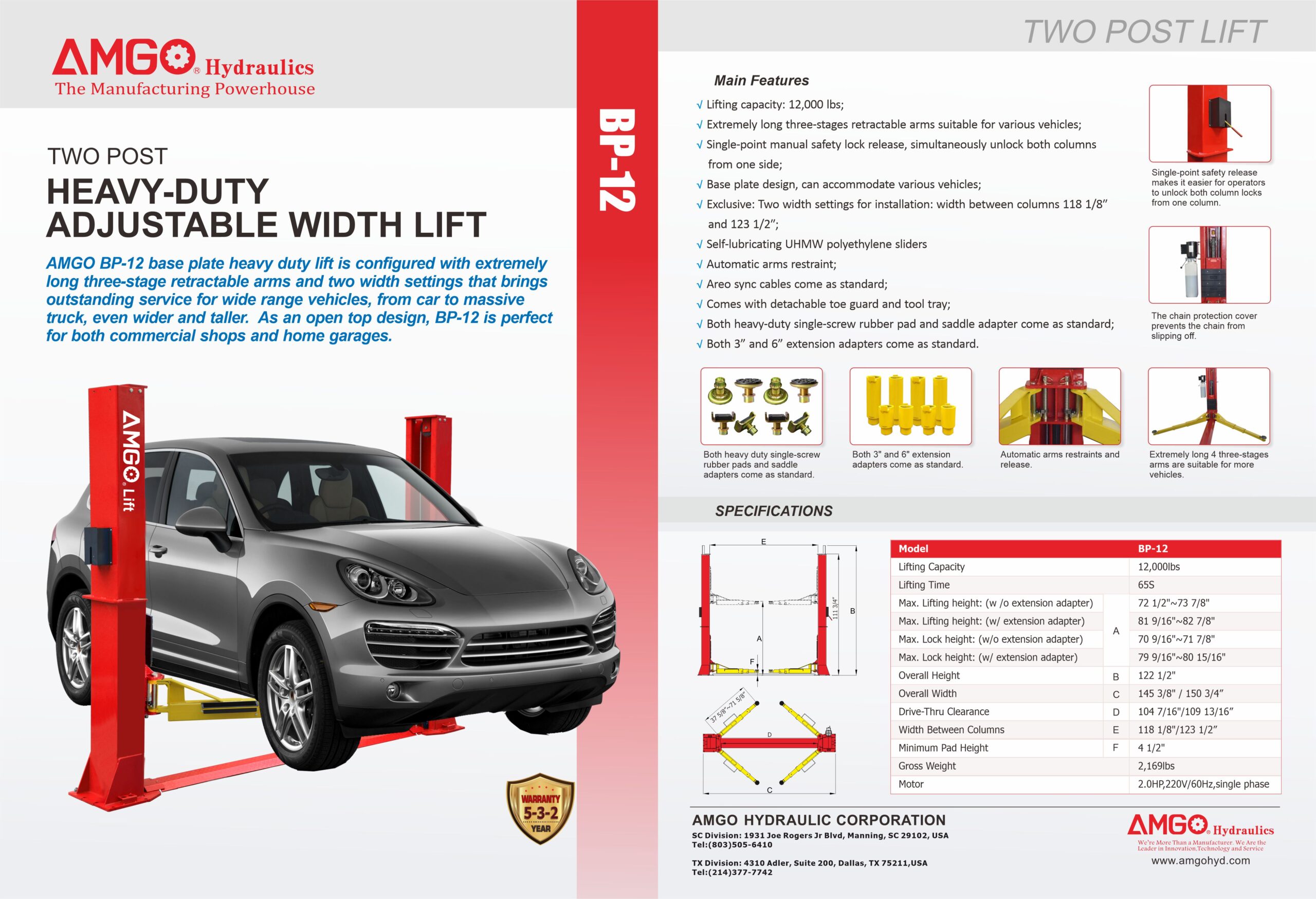

Download Product Brochure

Manual



Categories: ,

Description

Features

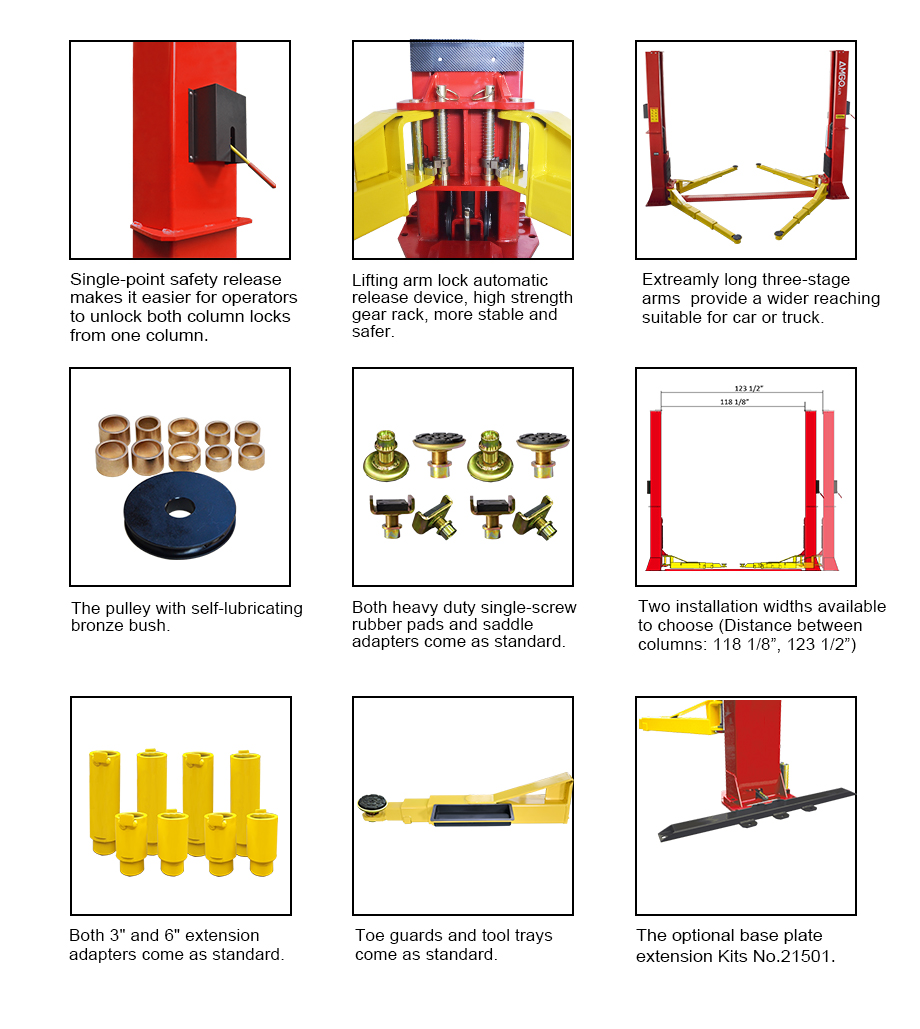

• 10,000 lbs capacity, chain-driven 2 post lift with base plate. Designed for low ceiling professional and home garages with no obstructions and increased headroom

• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety

• Super-symmetric arms provide versatility when choosing between asymmetric and symmetric positions and eliminates the need for two different kinds of lifts.The three-stage front arms and two-stage rear arms allow entry in and out of the vehicle when needed

• Automatic arm restraints keep the arms locked in their proper positions

• Self-lubricating UHMW Polyethylene sliders and bronze bushings

• Aircraft quality cable is used for synchronization

• Detachable foot guard and tool tray to allow for a clutter free work space

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Specifications

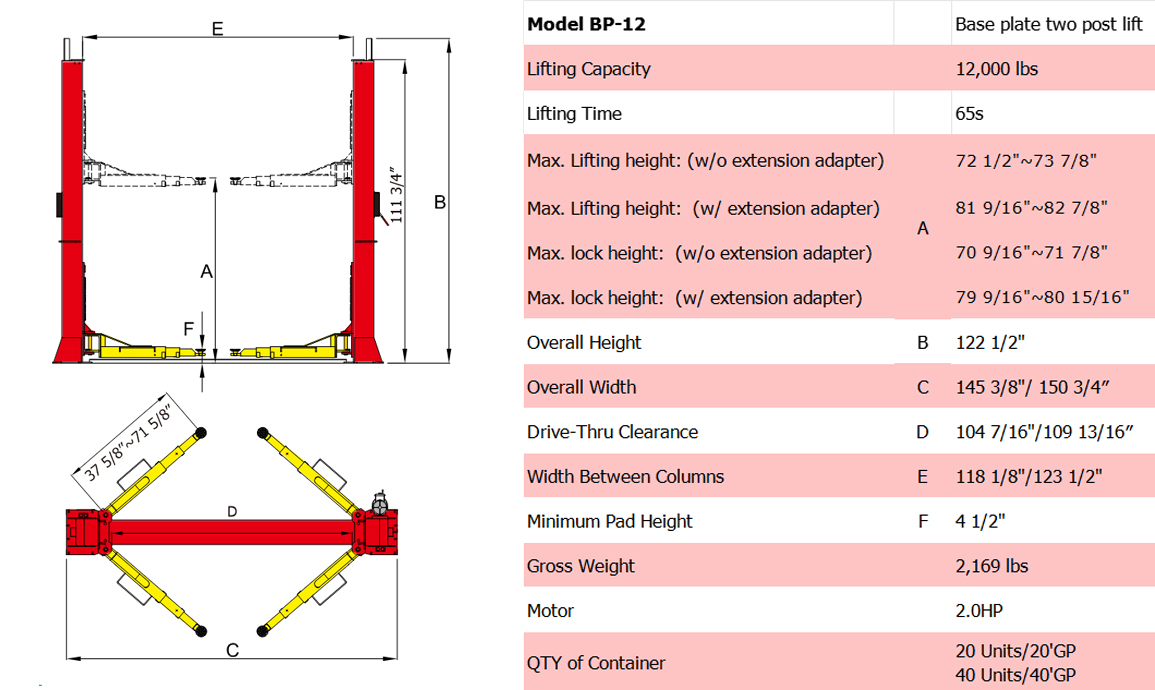

bp-12 diagram

Model BP-12
Lifting Capacity 12,000 lbs (5,443 kg)
Lifting Time 64S
A:Lifting Height 73 1/4″ ~ 82 1/4″ (1860~2089mm)
B:Overall Height 122 1/2″ (3110mm)
C:Overall Width 145 3/8″ / 150 3/4″ (3692 / 3829mm)
D:Drive-Thru Clearance 104 1/2″/ 109 7/8″ (2653 / 2790mm)
E:Width Between Columns 118 1/8″/ 123 1/2″ (3000 / 3137mm)
F:Minimum Pad Height 4 3/4″” (120mm)
Motor 2.0HP
Gross Weight 2,279 lbs (1,034 kg)

2 reviews for BP-12

  1. eric coplin

    have seen a few car lifts amgos 12000 lb lift as nice as ive seen! heavy duty performs very well. im very glade I bought it love it wish I would of bought it a long time ago.Thanks Amgo’5 star

  2. frank jauregui

    Its great
