Description
Features
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissors lift uses a 5 7/8″ x 3″ (150 x75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform
• Optional rolling jacks:
– RJ-8A: 8,000 lbs with pneumatic pump
• More choices:
Optional turnplate Kits No. 40101
Optional led lights Kits No. PX010
Optional extension Kits No. PX003
Optional airline KitsNo. PX004
| Model | AX-16A |
| Style | Alignment |
| Lifting Capacity | 16,000 lbs (7,300 kg) |
| Lifting Time | 110S |
| A1: Max. Lifting Height | 73 5/8″ (1870mm) |
| A2: Minimum Height | 13″ (330mm) |
| B: Runway Length | 213 3/4″ (5428mm) |
| C: Overall Width | 94 1/8″ (2390mm) |
| D: Width Between Runways | 44 7/8″ (1140mm) |
| E: Overall Length (Inc. Ramps） | 274 1/8″ (6964mm) |
| F: Min.Four Wheel Align | 98″ (2490mm) |
| G: Max.Four Wheel Align | 184 1/2″ (4680mm) |
| H: Max.Two Wheel Align | 190 1/2″ (4840mm) |
| Motor | 2.0HP 220V/60Hz Single Phase |
| Gross Weight | 6,345lbs (2,878 kg) |

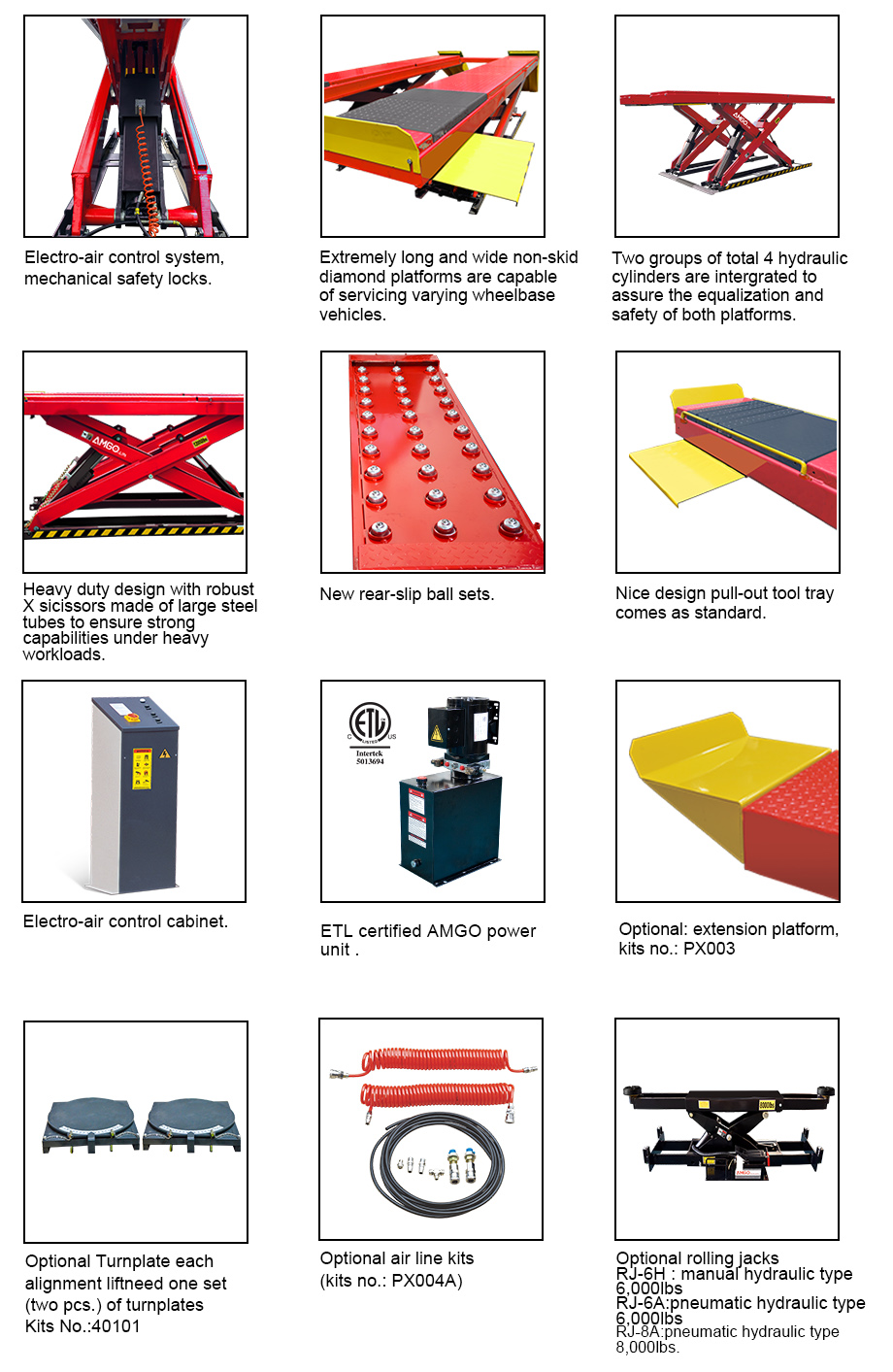

Detailed Images
-
- Pull-out shelf for extra room allows more effective working environments
-
- Mechanical lock and air-driven safety release.
-
- Optional LED light kits is fitted for every model of AMGO Scissors lifts. LED Kits No.:PX010
-
- Optional extension kits to extend the platform 11 7/8″ (300mm). Kits No.:PX001(AX-12) Kits No.:PX002(AX-12A) Kits No.:PX003(AX-16A)
-
- Turnplate Kits No.40101
-
- Optional airline kits. Easy and convenient installation for all models of rolling jacks with a pneumatic pump. Kits No.:PX004
-
- Optional Rolling Jacks: RJ-8A: pneumatic hydraulic type 8,000lbs(3,500kg);
