Description
Features
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform
• Optional rolling jacks:
– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump
• More choices:
– Optional turnplate Kits No. 40101
– Optional led lights Kits No. PX010
– Optional extension kits No. PX002
– Optional airline kits No. PX004
| Model | AX-12A |
| Style | Alignment |
| Lifting Capacity | 12,000 lbs (5,500 kg) |
| Lifting Time | 75S |
| A1: Max. Lifting Height | 73 5/8″ (1870mm) |
| A2: Minimum Height | 11 3/4″(300mm) |
| B: Runway Length | 197 1/2″ (5018mm) |
| C: Overall Width | 90 1/8″ (2290mm) |
| D: Width Between Runway | 41″ (1040mm) |
| E: Overall Length(Inc. Ramps) | 258″ (6554mm) |
| F: Min.Four Wheel Align | 81 7/8″ (2080mm) |
| G: Max.Four Wheel Align | 167 3/4″ (4260mm) |
| H: Max.Two Wheel Align | 174″ (4420mm) |
| Motor | 2.0HP 220V/60Hz Single Phase |
| Gross Weight | 5,785lbs (2,624 kg) |

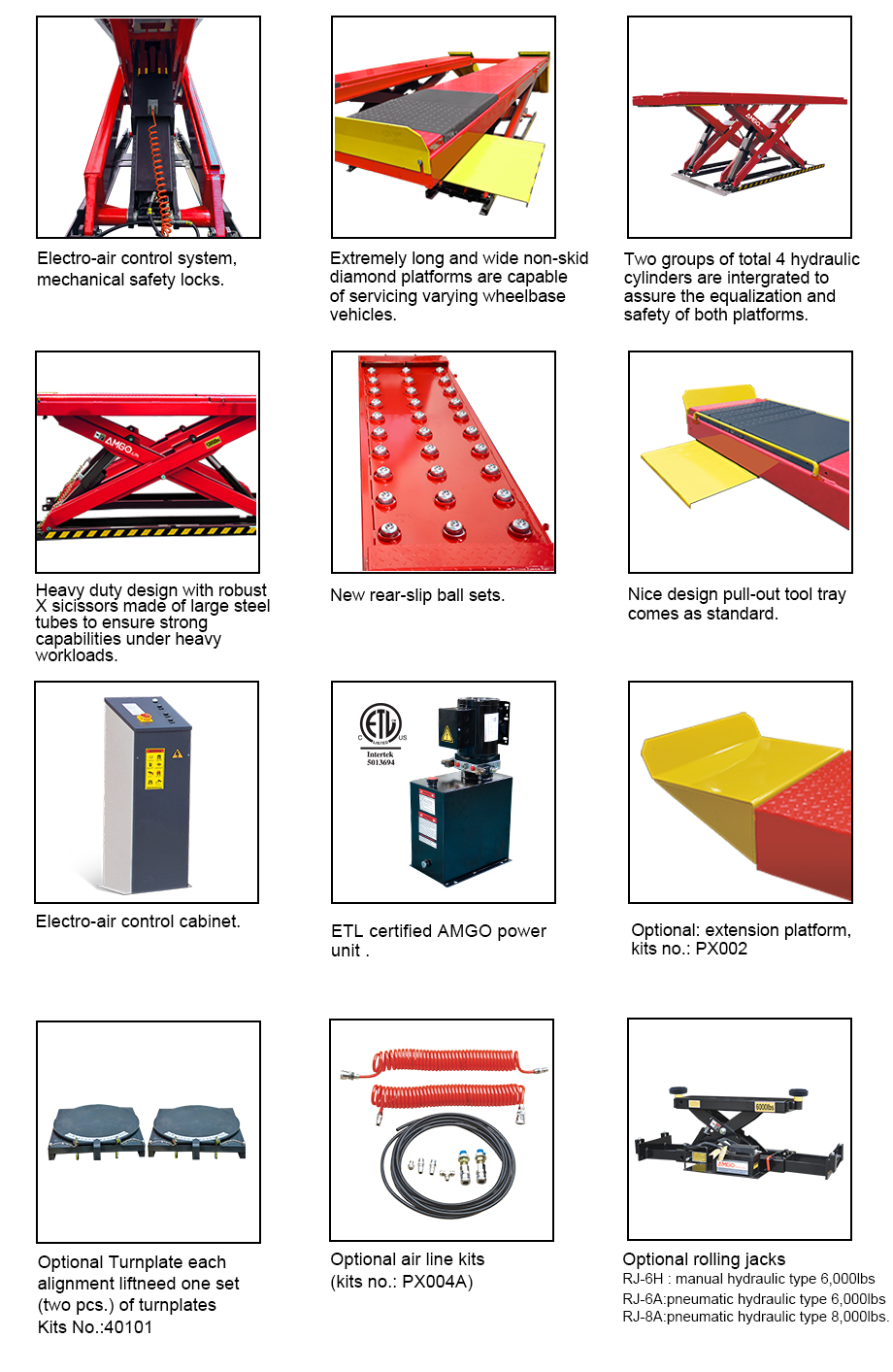

Detailed Images
-
- Pull-out shelf for extra room allows more effective working environments
-
- Mechanical lock and air-driven safety release.
-
- Optional LED light kits is fitted for every model of AMGO Scissors lifts. LED Kits No.:PX010
-
- Optional extension kits to extend the platform 11 7/8″ (300mm). Kits No.:PX001(AX-12) Kits No.:PX002(AX-12A) Kits No.:PX003(AX-16A)
-
- Turnplate Kits No.40101
-
- Optional airline kits. Easy and convenient installation for all models of rolling jacks with a pneumatic pump. Kits No.:PX004
-
- Optional Rolling Jacks: J6A:Pneumatic hydraulic type 6,000lbs;
-
- Optional Rolling Jack: J6H: 6,000 lbs with manual pump
