409-HP Parking Lift

Similar to the 408-P but longer, wider, and heavier. The 409-HP can lift 12″ higher and lift an additional 1,000 lbs than the 408-HP.

Contact Us Now

Download Product Brochure

Categories: ,

Description

Features

• 9,000 lbs. capacity, which is perfect for light-duty vehicles

• AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the  safety locks from one column simultaneous.

•  Longer, wider, and heavier than the 408-P

•  Double-S shaped columns help increase the columns strength

•  Skid proof diamond platform provides traction for the tires to stay put.

•  Optional Parts: 4 plastic drip trays, 1 jack tray and 4 caster kits

• Flexible Design: The power side column can be installed at any corner

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

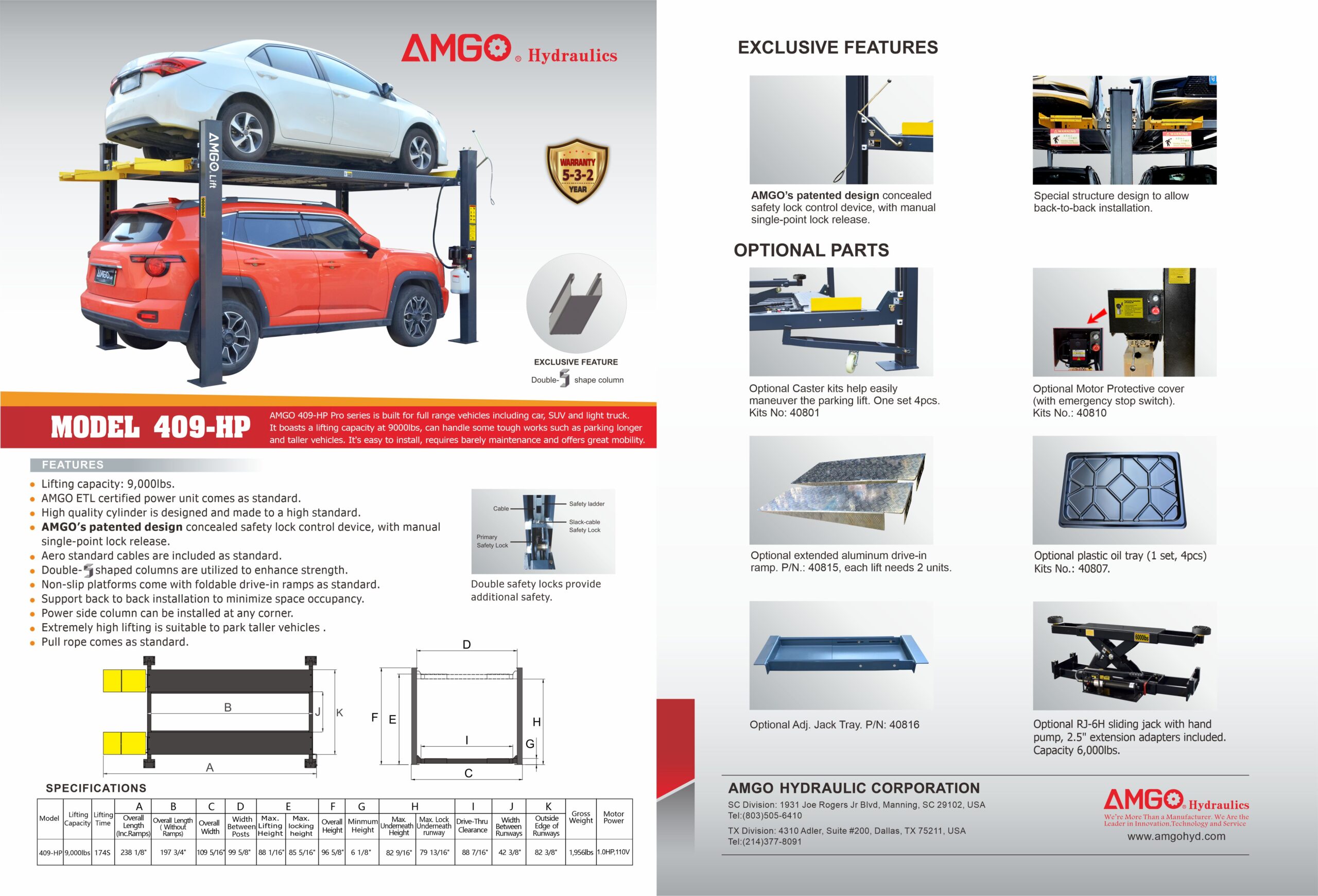

409-HP Diagram

Model 409-HP
Lifting Capacity 9,000 lbs (4,082 kg)
Lifting Time 54s
A: Overall Length (Inc Ramps) 230 5/8″ (5857mm)
B: Overall Length (No Ramps) 196 7/8″ (5000mm)
C: Overall Width 126 1/4″ (3206mm)
D: Width Between Columns 112 5/8″ (2860mm)
E: Lifting Height 85 1/2″ (2172mm)
F: Overall Height 94 5/8″ (2405mm)
G: Width Between Platforms 42 3/8″ (1077mm)
H: Platforms outer width 82 3/8″ (2093mm)
Gross Weight 2,183 lbs (990 kg)
Motor 220V / 2.0HP
