408-P-1

408-P

The AMGO 408-P is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-P requires no special foundation or complicated installation and is about the The feature, and more, make the AMGO 408-P one of the best commercial or private use lifts in the world. The 408-P is the perfect choice for commercial shops or residential car ports trying to save Space with a capacity of 8,000 lbs.

Contact Us Now

Click to download Product Brochure
Click to download Product Manual

Categories: Lifts, Parking Lifts

Description
Reviews (0)

Description

Features

• 8,000 lbs. capacity, which is perfect for light-duty vehicles

• AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column simultaneous.

• Double-S shaped columns help increase the columns strength

• Skid proof diamond platform provides traction for the tires to stay put.

• Optional parts: 4 plastic drip trays,1 jack tray and caster kits set of 4

• Flexible Design: The power side column can be installed at any corner

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model	408-P
Lifting Capacity	8,000lbs(3,500kg)
Lifting Time	81s / 31s
A: Overall Length (Inc Ramps)	207″(5257mm)
B: Overall Length (No ramps)	173 1/4″(4400mm)
C: Overall Width	109 5/8″ (2784mm)
D: Width Between Columns	96″ (2438mm)
E: Lifting Height	73 3/4″(1872mm)
F: Overall Height	82 7/8″(2105mm)
G: Minmun Height	6 1/8″(155mm)
H: Runway Width	18 3/4″(475mm)
I: Drive-Thru Clearance	81 5/8″(2074mm)
J: Width Between Columns	37″ (940mm)
Gross Weight	1,649 lbs(747 kg)
Motor	1.0HP 110V/60Hz; 2.0HP 220V/60Hz

Detailed Images

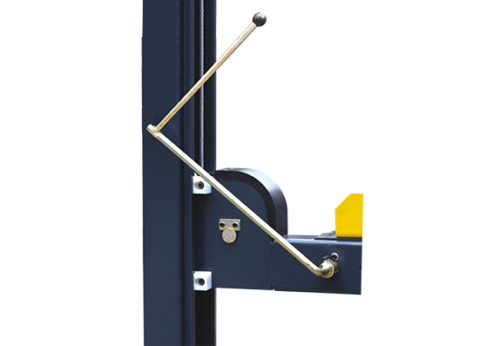

: Hidden locking device and manual single point safety lock release allows all 4 columns to disengage at once.

: Commercial double safety locks provide additional safety.

: Aluminum alloy drive in ramps. Weight for the set is 40 lbs (18 kg). Kit No: 40803

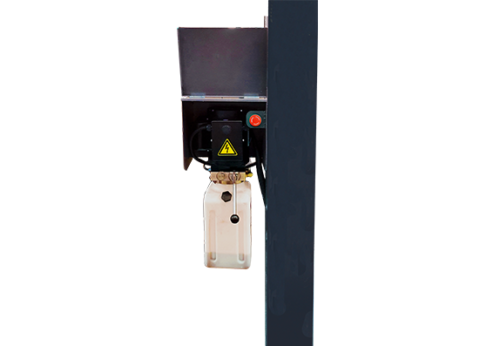

: 90° installation plate for installing the power unit at the side of a column. Kit No: 40802

: Optional Caster Kit help easily maneuver the parking lift. Each 4-post parking needs 4 pieces of caster. Kit No: 40801

: J5H sliding jack with hand pump. 1.5″ and 2.5″ extension adapters included. Capacity 5,000lbs.

: Drip Trays Optional 408-P： Kits No.:410140 Specifications 930*600mm 409-P/409-HP： Kits No.: 410141 Specifications 1067*600mm

: 408-P:Kits No.:410040 409-P/409-HP: Kits No.:410062
